Planetary gearboxes also have a high torque transmitting capacity due to the distribution of the load across several planets, making them stable and long-lasting. They are also highly efficient, with low power losses and transmission efficiency up to 98% for the first stage of the gearbox.
Planetary gears are characterised by their high level of efficiency; they also display a high power density in comparison to other types of gears, due to their compact construction. The use of the external ring gear in particular reduces both the volume and mass of this type of gear.
Jkongmotor are stepper motors and brushless dc motor manufacture with 15+ years experience, also, we can provide worm gearbox, planetary gearbox, brake, encoder, driver, integrated servo motor or other products related motors. Welcome customers inquriy.
Product Type: FLE42 Planetary Gearbox
Suitable Motor：Nema 17 42mm stepper motor
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 42mm Nema 17 stepping motor
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

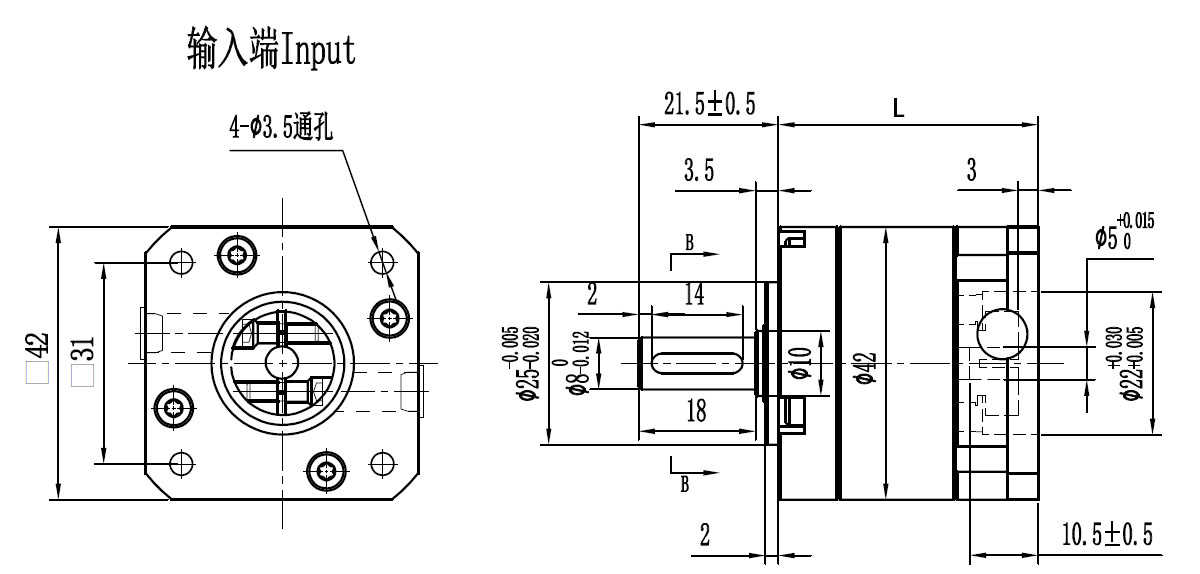

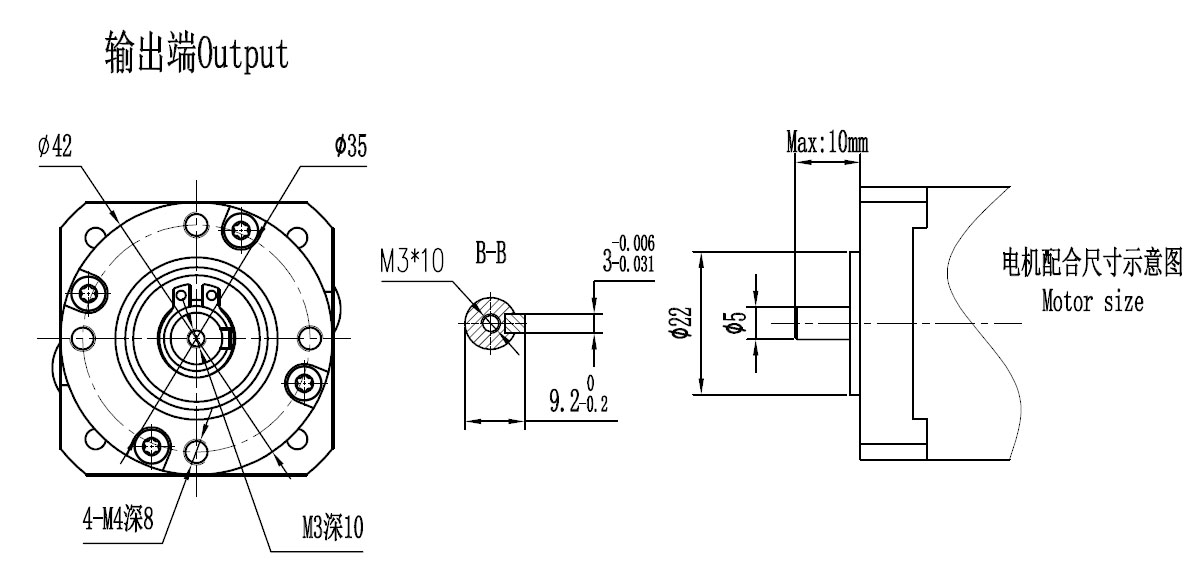

| Model | / | JK-FLE42-L1 | JK-FLE42-L2 | |||||
| Gear Ratio | / | 4 | 5 | 10 | 20 | 25 | 50 | 100 |
| Gear Trains | / | 1 | 2 | |||||
| Gearbox Length | mm | 61.5 | 72.5 | |||||
| Rated Torque | N.m | 9 | 9 | 5 | 10 | 10 | 10 | 5 |
| Sundden Stop Torque | N.m | 18 | 18 | 10 | 20 | 20 | 20 | 10 |
| Back Lash | arcmin | ≤30 arcmin | ≤45arcmin | |||||
| Efficiency | % | 90 | 80 | |||||
| Suitable Motor Dimension | mm | Φ5-10 / Φ22-2 / F31-M3 | Φ5-10 / Φ22-2 / F31-M3 | |||||
| Rated Input Speed | Rpm | 1000 | 1000 | |||||
| Max Input Speed | Rpm | 2000 | 2000 | |||||
| Average Life Span | h | 20000 | 20000 | |||||
| Axial Force | N | 100 | 100 | |||||
| Radial Force | N | 300 | 300 | |||||
| Noise | dB | ≤55 | ≤55 | |||||
| Protection Level | IP | IP54 | IP54 | |||||
| Work Temp. | ℃ | -20 to +150 | -20 to +150 | |||||
| Out Shaft Type | / | Key Shaft Type | Key Shaft Type | |||||
| Model | / | JK-FLE42-L1SW | JK-FLE42-L2SW | |||||
| Gear Ratio | / | 4 | 5 | 10 | 20 | 25 | 50 | 100 |
| Gear Trains | / | 1 | 2 | |||||
| Gearbox Length | mm | 76.5 | 87.5 | |||||
| Rated Torque | N.m | 9 | 9 | 5 | 10 | 10 | 10 | 10 |
| Sundden Stop Torque | N.m | 18 | 18 | 10 | 20 | 20 | 20 | 20 |
| Back Lash | arcmin | ≤30 arcmin | ≤45 arcmin | |||||
| Efficiency | % | 90 | 80 | |||||
| Suitable Motor Dimension | mm | Φ5-24 / Φ22-2 / F31-M3 | Φ5-24 / Φ22-2 / F31-M3 | |||||
| Rated Input Speed | Rpm | 1000 | 1000 | |||||
| Max Input Speed | Rpm | 2000 | 2000 | |||||
| Average Life Span | h | 20000 | 20000 | |||||
| Axial Force | N | 100 | 100 | |||||
| Radial Force | N | 300 | 300 | |||||
| Noise | dB | ≤55 | ≤55 | |||||
| Protection Level | IP | IP54 | IP54 | |||||
| Work Temp. | ℃ | -20 to +150 | -20 to +150 | |||||
| Out Shaft Type | / | Key Shaft Type | Key Shaft Type | |||||
Note: Above only for representative products, products of special request can be made according to the customer request.
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm2 | Kg | |
| JK42HS25-0404 | 1.8 | 25 | 0.4 | 24 | 36 | 1.8 | 4 | 75 | 20 | 0.15 |
| JK42HS28-0504 | 1.8 | 28 | 0.5 | 20 | 21 | 1.5 | 4 | 85 | 24 | 0.22 |
| JK42HS34-1334 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.2 | 4 | 120 | 34 | 0.22 |
| JK42HS34-0406 | 1.8 | 34 | 0.4 | 24 | 15 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS34-0956 | 1.8 | 34 | 0.95 | 4.2 | 2.5 | 1.6 | 6 | 120 | 34 | 0.22 |
| JK42HS40-0406 | 1.8 | 40 | 0.4 | 30 | 30 | 2.6 | 6 | 150 | 54 | 0.28 |
| JK42HS40-1684 | 1.8 | 40 | 1.68 | 1.65 | 3.2 | 3.6 | 4 | 150 | 54 | 0.28 |
| JK42HS40-1206 | 1.8 | 40 | 1.2 | 3 | 2.7 | 2.9 | 6 | 150 | 54 | 0.28 |
| JK42HS48-0406 | 1.8 | 48 | 0.4 | 30 | 25 | 3.1 | 6 | 260 | 68 | 0.35 |
| JK42HS48-1684 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 4.4 | 4 | 260 | 68 | 0.35 |
| JK42HS48-1206 | 1.8 | 48 | 1.2 | 3.3 | 2.8 | 3.17 | 6 | 260 | 68 | 0.35 |
| JK42HS60-0406 | 1.8 | 60 | 0.4 | 30 | 39 | 6.5 | 6 | 280 | 102 | 0.5 |
| JK42HS60-1704 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 280 | 102 | 0.5 |
| JK42HS60-1206 | 1.8 | 60 | 1.2 | 6 | 7 | 5.6 | 6 | 280 | 102 | 0.5 |
| JK42HM34-1334 | 0.9 | 34 | 1.33 | 2.1 | 4.2 | 2.2 | 4 | 200 | 35 | 0.22 |
| JK42HM34-0316 | 0.9 | 34 | 0.31 | 38.5 | 33 | 1.58 | 6 | 200 | 35 | 0.22 |
| JK42HM34-0956 | 0.9 | 34 | 0.95 | 4.2 | 4 | 1.58 | 6 | 200 | 35 | 0.22 |
| JK42HM40-1684 | 0.9 | 40 | 1.68 | 1.65 | 3.2 | 3.3 | 4 | 220 | 54 | 0.28 |
| JK42HM40-0406 | 0.9 | 40 | 0.4 | 30 | 30 | 2.59 | 6 | 220 | 54 | 0.28 |
| JK42HM40-1206 | 0.9 | 40 | 1.2 | 3.3 | 3.4 | 2.59 | 6 | 220 | 54 | 0.28 |
| JK42HM48-1684 | 0.9 | 48 | 1.68 | 1.65 | 4.1 | 4.4 | 4 | 250 | 68 | 0.35 |
| JK42HM48-1206 | 0.9 | 48 | 1.2 | 3.3 | 4 | 3.17 | 6 | 250 | 68 | 0.35 |
| JK42HM48-0406 | 0.9 | 48 | 0.4 | 30 | 38 | 3.17 | 6 | 250 | 68 | 0.35 |
| JK42HM60-1684 | 0.9 | 60 | 1.68 | 1.65 | 5 | 5.5 | 4 | 270 | 106 | 0.55 |
Note: Above only for representative products, products of special request can be made according to the customer request.
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
