Planetary gearboxes are known for their high torque capacity, thanks to the load sharing among multiple planets, which enhances stability and durability. They also boast excellent efficiency, with minimal power losses, achieving transmission efficiencies of up to 98% in the first stage.
These gears are highly efficient and offer a high power density compared to other gear types due to their compact design. The inclusion of an external ring gear further reduces the overall size and weight of the gear system.
Jkongmotor specializes in manufacturing stepper motors and brushless DC motors with over 15 years of experience. We also supply worm gearboxes, planetary gearboxes, brakes, encoders, drivers, integrated servo motors, and other motor-related products. Welcome to inquire with us.
Product Type: HPR28 Nema 11 Planetary Gearbox
Suitable Motor：Nema 11 28mm stepper motor or bldc motor
Feature summary：Low Inertia、Low Noise、High Torque
Place of Origin：china
Minimum order quantity：10pcs
Material Science：stator, rotor, stainless steel shaft, copper wire, magnetic steel...
Applicatin Scope: 28mm Nema 11 stepping motor
Packing：The sample is packed in carton,the batch with plastic pallet
Delivery time：Standard product: 7-10days
Customized product: 25-30days
Transaction mode：EXW, FOB, FCA, CIF, FAS, CFR, CPT, CIP, DAF, DEQ, DDU, DDP...

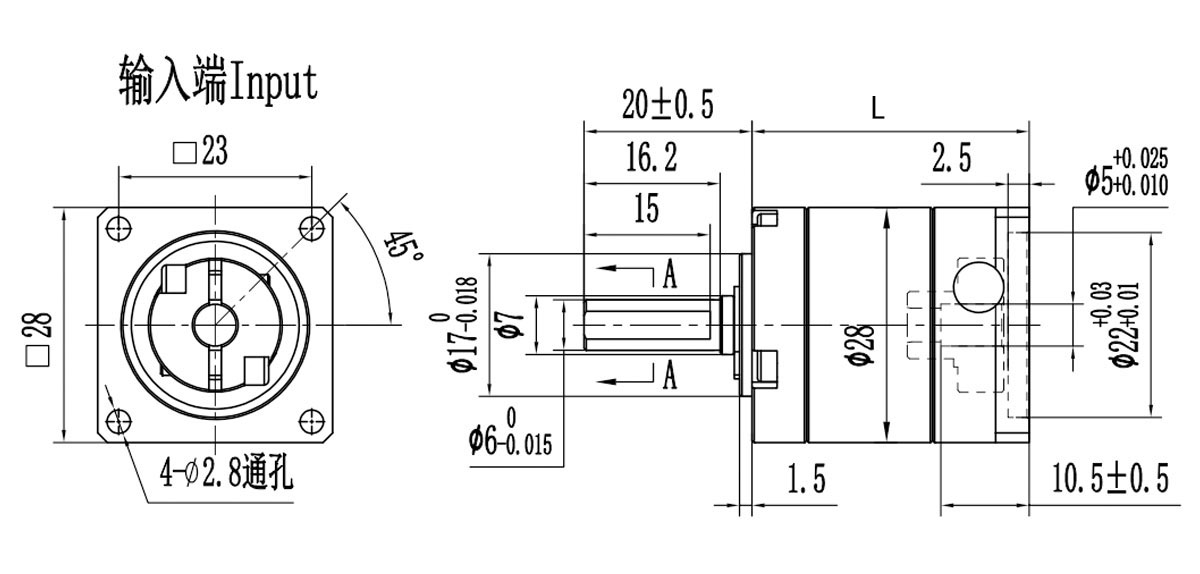

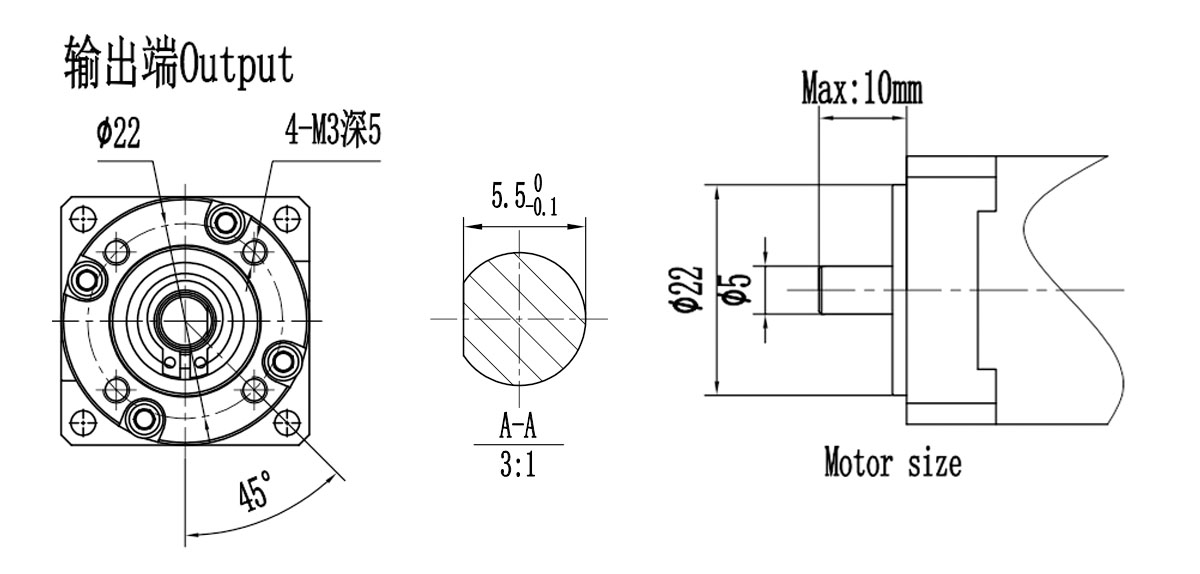

| Model | / | JK-HPR28-L1 | JK-HPR28-L2 | JK-HPR28-L3 | |||||||||||||||||||
| Gear Ratio | / | 4 | 5 | 7 | 10 | 16 | 20 | 25 | 28 | 30 | 35 | 40 | 45 | 50 | 70 | 100 | 64 | 80 | 100 | 125 | 140 | 175 | 200 |
| Gear Trains | / | 1 | 2 | 3 | |||||||||||||||||||
| Gearbox Length | mm | 53 | 61 | 69 | |||||||||||||||||||
| Rated Torque | N.m | 2 | 2 | 2 | 1 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 3 | 3 | 3 | 6 | 6 | 6 | 6 | 6 | 6 | 6 |
| Sundden Stop Torque | N.m | 4 | 4 | 4 | 2 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 6 | 6 | 6 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| Back Lash | arcmin | ≤15 arcmin | ≤20 arcmin | ≤25 arcmin | |||||||||||||||||||
| Efficiency | % | 96 | 94 | 90 | |||||||||||||||||||
| Suitable Motor Dimension | mm | Φ5-10 / Φ22-2.5 / F23-M2.5 | Φ5-10 / Φ22-2.5 / F23-M2.5 | Φ5-10 / Φ22-2.5 / F23-M2.5 | |||||||||||||||||||
| Rated Input Speed | Rpm | 1000 | 1000 | 1000 | |||||||||||||||||||
| Max Input Speed | Rpm | 2000 | 2000 | 2000 | |||||||||||||||||||
| Average Life Span | h | 20000 | 20000 | 20000 | |||||||||||||||||||
| Axial Force | N | 100 | 100 | 100 | |||||||||||||||||||
| Radial Force | N | 300 | 300 | 300 | |||||||||||||||||||
| Noise | dB | ≤55 | ≤55 | ≤55 | |||||||||||||||||||
| Protection Level | IP | IP54 | IP54 | IP54 | |||||||||||||||||||
| Work Temp. | ℃ | -20 to +150 | -20 to +150 | -20 to +150 | |||||||||||||||||||
| Out Shaft Type | / | D-cut Type | D-cut Type | D-cut Type | |||||||||||||||||||
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | g.cm | No. | g.cm2 | Kg | |
| JK28HS32-0674 | 1.8 | 32 | 0.67 | 5.6 | 3.4 | 600 | 4 | 9 | 0.11 |
| JK28HS32-0956 | 1.8 | 32 | 0.95 | 2.8 | 0.8 | 430 | 6 | 9 | 0.11 |
| JK28HS45-0956 | 1.8 | 45 | 0.95 | 3.4 | 1.2 | 750 | 6 | 12 | 0.14 |
| JK28HS45-0674 | 1.8 | 45 | 0.67 | 6.8 | 4.9 | 950 | 4 | 12 | 0.14 |
| JK28HS51-0956 | 1.8 | 51 | 0.95 | 4.6 | 1.8 | 900 | 6 | 18 | 0.2 |
| JK28HS51-0674 | 1.8 | 51 | 0.67 | 9.2 | 7.2 | 1200 | 4 | 18 | 0.2 |
Note: Above only for representative products, products of special request can be made according to the customer request.
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector / Encoder / Brake / Gearbox and others. We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
